Banyan and Butterfly Networks

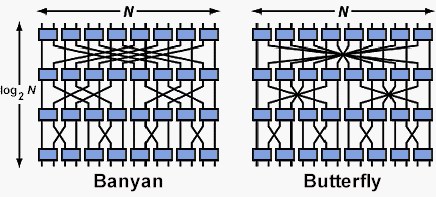

An N-input Banyan or Butterfly achieves complete connectivity in log2 N rows.

The Banyan gets its name from a Banyan tree, while the Butterfly gets its name from the fact that the crossovers look like butterfly wings. A Banyan and Butterfly can be shown to be topologically equivalent.
