Broadcast Efficiency






A 30 point broadcast in a Galois Network requires 6 of the 30 links. Links are reduced by a factor of 5.

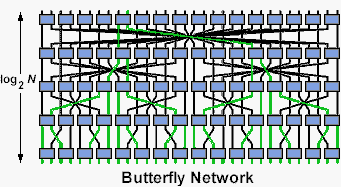

A 32 point broadcast in a Butterfly Network requires 32 of the 128 links.


Bottom line: The larger the module fanout and the fewer the rows the greater the broadcast efficiency.
